ProForm Treadmill Motor Board Failure in Dallas: How to Diagnose It and What Comes Next

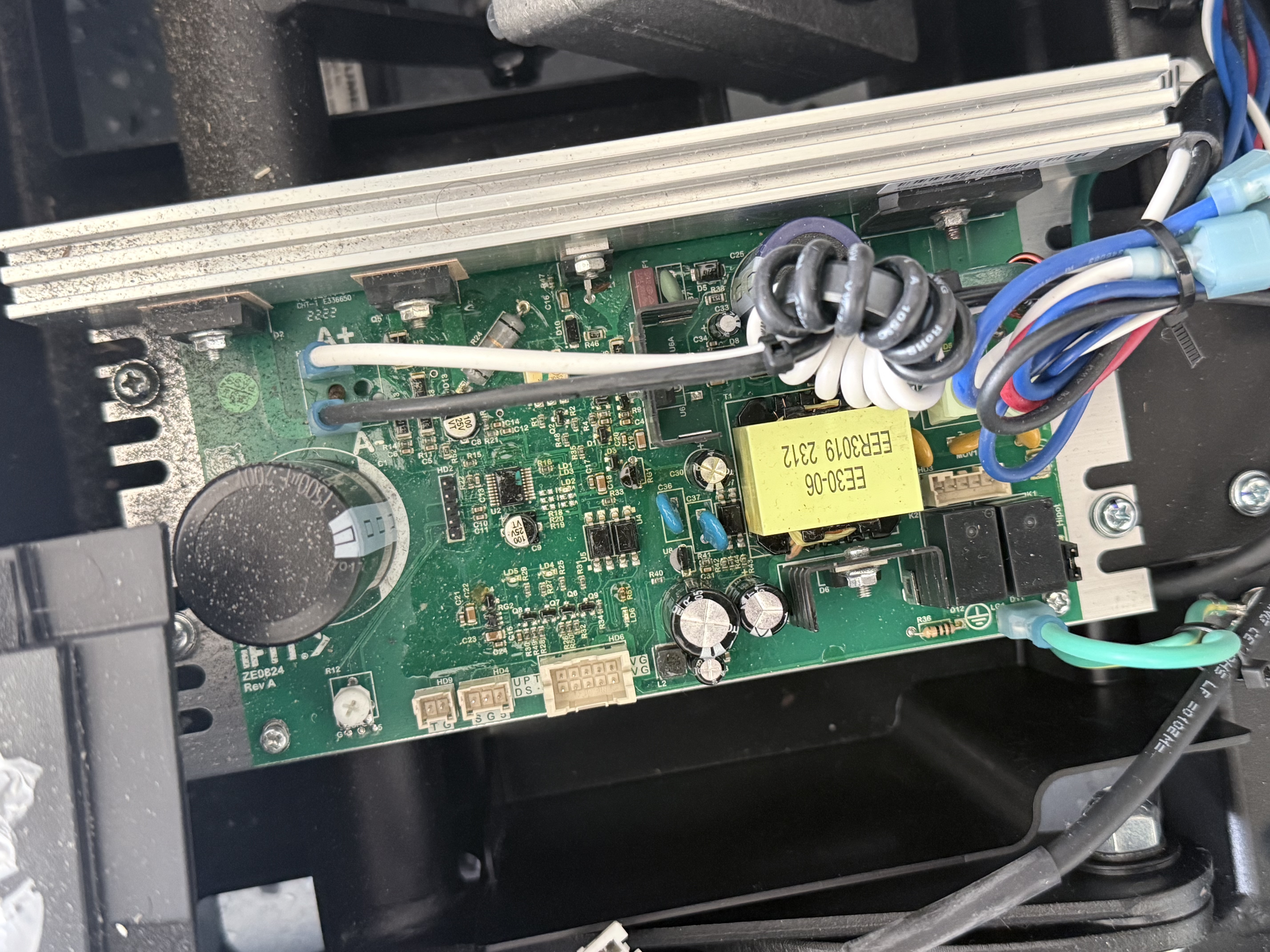

ProForm treadmill motor control board failure is one of the most common service calls we handle at 2EZ TEK across Dallas Fort Worth. The motor control board, also called the MCB or lower board, converts AC power from your wall outlet into the DC voltage your drive motor needs to spin the walking belt. When it fails, the treadmill can die completely, surge unpredictably, or throw error codes that point in three different directions at once. A lot of homeowners order the wrong part first because the symptoms overlap with drive motor failure, reed switch problems, and even a worn walking belt. This guide covers what is actually happening inside the machine so you can make a smart call before spending any money.

Common Symptoms

• Belt does not move but console powers on: the display lights up and responds to button presses, but pressing start does nothing because the motor control board is not sending DC voltage to the drive motor.
• Belt surges or jerks at low speeds: the board is delivering inconsistent DC output, causing the drive motor to speed up and slow down in short bursts even when the speed setting stays constant.
• Burning smell near the lower hood: a failing capacitor or burnt trace on the motor control board produces a distinct electrical smell that rises from underneath the motor cover, not from the belt or deck area.
• Treadmill trips the circuit breaker immediately on startup: a shorted board draws a current spike the moment power is applied, tripping the breaker before the walking belt even begins to move.
• Error codes E1, E2, or MC on the console display: ProForm consoles communicate with the motor control board over a dedicated data line, and these codes appear when that communication fails or the board reports an internal fault.
• Speed reads zero while the belt is moving: the board may still be partially functional but is not processing the reed switch signal correctly, producing false or frozen speed readings on the display.
• Treadmill shuts off after a few minutes of use: thermal protection on a degraded board triggers an automatic shutdown once the board heats up under load, even if the room temperature is normal.

Root Causes: What Is Actually Happening

1. Failed power capacitors on the motor control board: the MCB uses large electrolytic capacitors to smooth the rectified DC voltage before it reaches the drive motor. Over time these capacitors bulge, leak, or lose capacitance entirely. When they fail, the voltage output becomes erratic and the motor receives a choppy signal instead of clean DC power.
2. Burnt or cracked solder traces: ProForm treadmills used in home gyms often run on circuits that are already near capacity. Repeated current spikes from startup cycles and incline actuator loads can crack solder joints or burn copper traces on the board, breaking the circuit path between the rectifier and the motor output terminals.
3. Damaged MOSFETs or SCRs: the motor control board uses power transistors, typically MOSFETs or silicon-controlled rectifiers, to regulate the speed of the drive motor. A voltage surge from a power outage or a failing drive motor can blow these components, leaving the board unable to control motor speed at all.
4. Worn drive motor feeding back into the board: a drive motor with worn brushes or failing armature windings draws excessive current and sends voltage spikes back through the motor control board. The board absorbs that stress over hundreds of hours until it fails. Replacing only the board without inspecting the motor often leads to a second board failure within months.
5. Loose or corroded wiring connections at the board terminals: the motor control board connects to the drive motor, the console, the reed switch, and the power supply through a series of quick-connect terminals. Vibration from daily use loosens these connections over time, creating resistance and heat at the terminal points that eventually damages the board itself.
6. Incorrect voltage supply from a shared or undersized circuit: ProForm treadmills require a dedicated 20-amp circuit. Running the machine on a shared circuit with other appliances causes voltage drops that force the motor control board to compensate, accelerating component wear and triggering premature failure.

What NOT to Do

• Do not order a replacement board before testing the drive motor: a failing drive motor will destroy a new motor control board in a short amount of time. If the motor is drawing excessive current or sending voltage spikes back through the circuit, the replacement board will fail for the same reason the original one did.
• Do not reset the circuit breaker and keep running the machine: if the treadmill is tripping your home circuit breaker, continuing to reset and restart it pushes more current through an already damaged board. Each restart cycle causes additional heat damage to the MCB components and can create a fire risk at the board terminals.
• Do not assume the console is the problem because it shows error codes: E1, E2, and MC codes on a ProForm console almost always originate at the motor control board or the reed switch, not the console itself. Replacing the upper console board based on error codes alone is one of the most common and expensive diagnostic mistakes we see.
• Do not use a generic replacement board without verifying the part number: ProForm has used multiple motor control board versions across the same model line. Installing a board with a slightly different voltage rating or connector configuration can damage the drive motor or produce the same symptoms you started with.

Professional Repair in Dallas Fort Worth

At 2EZ TEK, we have diagnosed and repaired ProForm treadmill motor control board failures across Dallas Fort Worth for years. Before we recommend any part replacement, we test DC output voltage at the board terminals, check drive motor resistance and brush condition, verify reed switch signal integrity, and inspect all wiring connections at the MCB. That process takes the guesswork out of the repair and makes sure the new board does not fail again for the same reason the original one did. We carry parts for ProForm, NordicTrack, iFIT, Bowflex, Sole, and other major brands.

With more than 500 five-star reviews from customers across the Dallas Fort Worth area, 2EZ TEK is the repair shop homeowners and apartment communities call when they want the job done right the first time. We offer same-week service appointments so your treadmill is not sitting in pieces for weeks waiting on a technician. Our repair process is transparent, we explain exactly what failed and why before any work begins, and we stand behind every repair we complete.

Frequently Asked Questions

How do I know if it is the motor control board or the drive motor that failed?

This is the most important question to answer before ordering any parts. A failed motor control board typically produces no belt movement even though the console powers on normally, or it produces surging at consistent speed settings. A failing drive motor usually shows up as excessive noise, a burning smell from the motor housing itself, or a machine that slows under light load. The only reliable way to separate these two causes is to measure DC output voltage at the motor control board terminals under load. If the board is producing correct voltage and the motor still does not respond, the motor is the problem. If the board output is absent or erratic, the MCB is the starting point.

Can the motor control board be repaired instead of replaced?

In some cases, yes. If the failure is limited to one or two blown capacitors or a cracked solder joint, a component-level repair is possible and costs less than a full board replacement. However, if the MOSFETs or SCRs have failed, or if there is visible burn damage across multiple traces, a full board replacement is the more reliable option. A technician can tell you which situation you are dealing with after a visual inspection and voltage test.

How long does a ProForm motor control board replacement take?

On most ProForm treadmill models, the motor control board is accessible by removing the lower motor hood, which takes about ten minutes. The board swap itself takes another fifteen to twenty minutes depending on the connector layout. The longer part of the job is the diagnostic work before the repair, testing the drive motor, reed switch, and wiring to make sure the new board goes into a clean circuit. A full repair appointment including diagnostics typically runs one to two hours.
